The skill rests on one rule, written at the top of its instructions above everything else:

The cut is the explanation.

SKILL.md, "The one idea that matters"

Claude has to choose a real, well-made object whose mechanism is the concept, then choose the one cutting plane that exposes it: the bore, the seat, the spring, the passage.

A sheet fails in two ways. A diagram dressed as a drawing: boxes with hatching and arrows with dimension heads. A drawing that shows nothing: the outside of a closed casing. The cure for both is the same: real parts, made of real materials, that touch and hold each other, cut open.2

Some ideas map almost by themselves. A rate limiter is a cistern with a fixed refill jet. Debounce is a door closer: every push restarts the closing. A circuit breaker is, well, a circuit breaker, and its three states are the software pattern's three names.

Floor pumpCompression · 3D Four-stroke enginePipeline stages · 3D Flyball governorFeedback control · 3D Lever escapementClock tick · 3D Bottle jackLeverage · 3D WC cisternRate limiting · 3D Door closerDebounce · 3D Pin tumbler lockAuthentication · 3D Circuit breakerCircuit breaker · 3D Wax thermostatSetpoint control · 3D Relief valveBack-pressure · 3D DifferentialLoad balancing · 3D Shock absorberLow-pass filter · 3D Click penState machine · 3D Centrifugal pumpOperating point · 3D Gear pumpBatching · 3D CarburettorBernoulli · 3D Pressure cookerInterlock · 3D Solenoid valveAmplification · 3D Stirling engineHeat engine · 3D Disc brakeReplication · 3D

None of these were drawn by hand. Each one started from a single line naming the object or the idea. There are 21 so far, all live in the collection.

Writing a prompt02

The prompt is the idea, not the drawing. "Explain how a token bucket rate limiter works" is enough; deciding that it should be a WC cistern is the part Claude is asked to do.

A few words change what you get:

You don't always need the command. The skill's description covers any request for a blueprint, a cutaway, a technical drawing or a "how it works" sheet, so Claude reaches for it on its own.3

What Claude does03

Between your line and the finished sheet, Claude works through a fixed order. The model and the parts list are written before a single line is drawn.

1. 01
   Size it. A Sheet is one assembly with 15 to 30 parts and 3 to 5 views; a Set is several sheets. Sheets are built without asking.
2. 02
   Truth first. Write the model: real dimensions, real physics, pure functions. The geometry, the dimensions, the readout and the chart all read it.
3. 03
   Choose the object and the cut. One sentence on what moves and what that motion means, and the one cutting plane that shows it.
4. 04
   Parts list. Every part numbered, with its standard size, a real material grade and a quantity.
5. 05
   Plan the sheet. A main section at a standard scale, details where the mechanism is small, a view in a named direction, a diagram. All laid out in sheet units first.
6. 06
   Geometry once. Each part is a function that draws into any view in millimetres of the real object, so a detail is the same code at a larger scale.
7. 07
   Draw by the rules. Thick visible edges, thin everything else, hatching by material, shafts and balls left uncut, thin walls blacked in.
8. 08
   Annotate. Dimensions measured from the geometry, a balloon on every part, words only where a drafter would put them.
9. 09
   One accent. Exactly one thing gets colour: what to watch, usually the working fluid, its density following pressure.
10. 10
    Make it live. Critically damped motion, an idle tour, drag and keys, dimensions that re-measure, a readout in the title block.
11. 11
    Check it like a checker. A headless browser plays the tour to a dozen moments and fails on any collision; then Claude reads 4× close-ups of every junction.

Anatomy of a sheet04

These are the rules a drafting checker would mark you down for, from ISO 128, 129, 5455 and 7200. The kit makes them easy, and the check makes them hard to break.

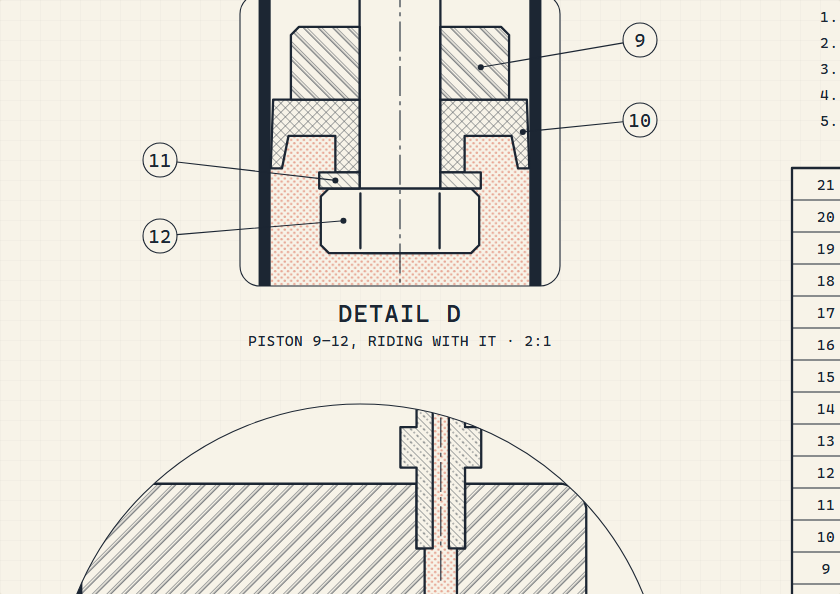

Here they are on one whole sheet: a bicycle floor pump, drafted at 1:2.5 with two details, a gauge view, a P–s diagram, 21 balloons, a parts list and a title block whose readout is live. Drag the handle and the stroke dimension re-measures itself.

Flat and solid05

Every sheet is a flat drawing first, because a flat section is where dimensions, scales and standards live. Here is the same kind of mechanism, a watch escapement, drawn flat at 20:1 and still running:

Then, where shape and assembly are the point, Claude builds a solid view from the same numbers: turned with the mouse, cut along the drawing's own section plane with hatched faces, and pulled apart into an exploded view. Add 3d to the request. Every sheet in the collection has one; open any of them below, then drag to turn it, press E to take it apart.

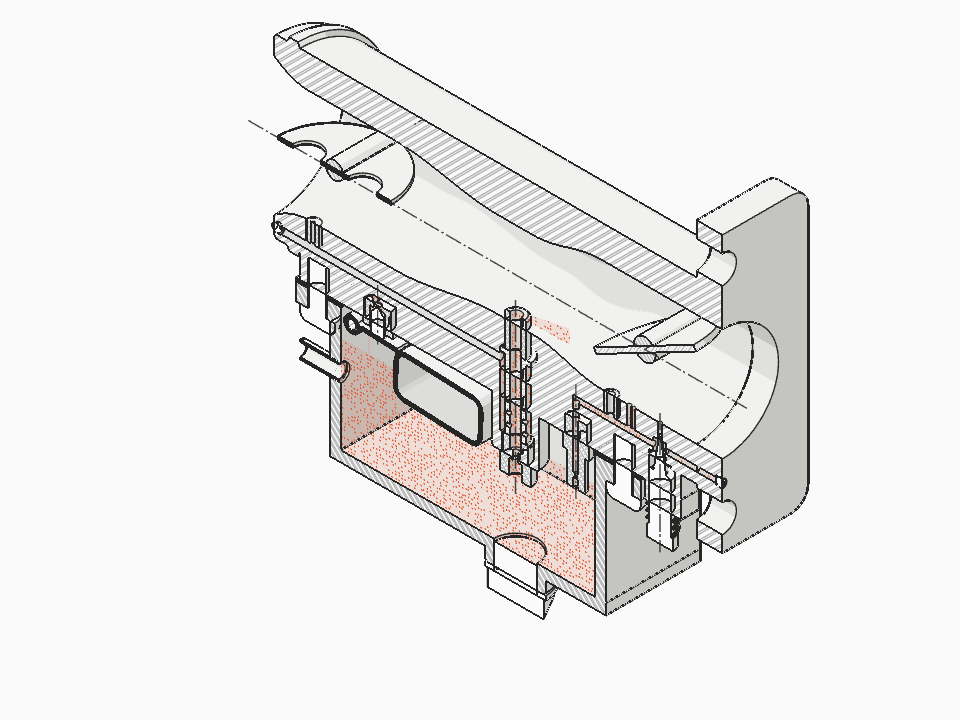

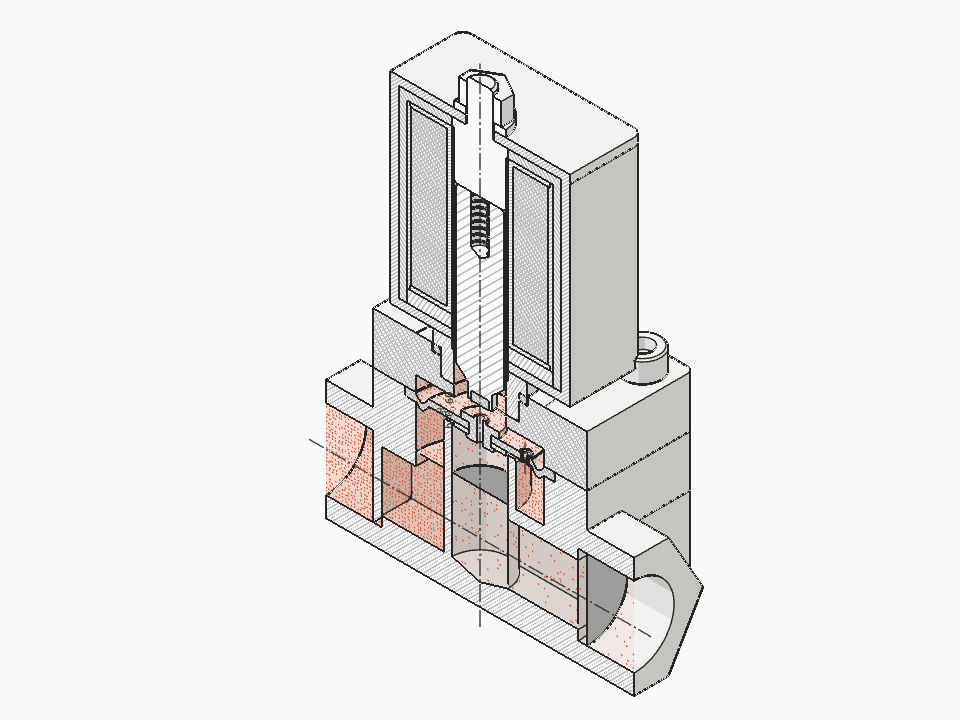

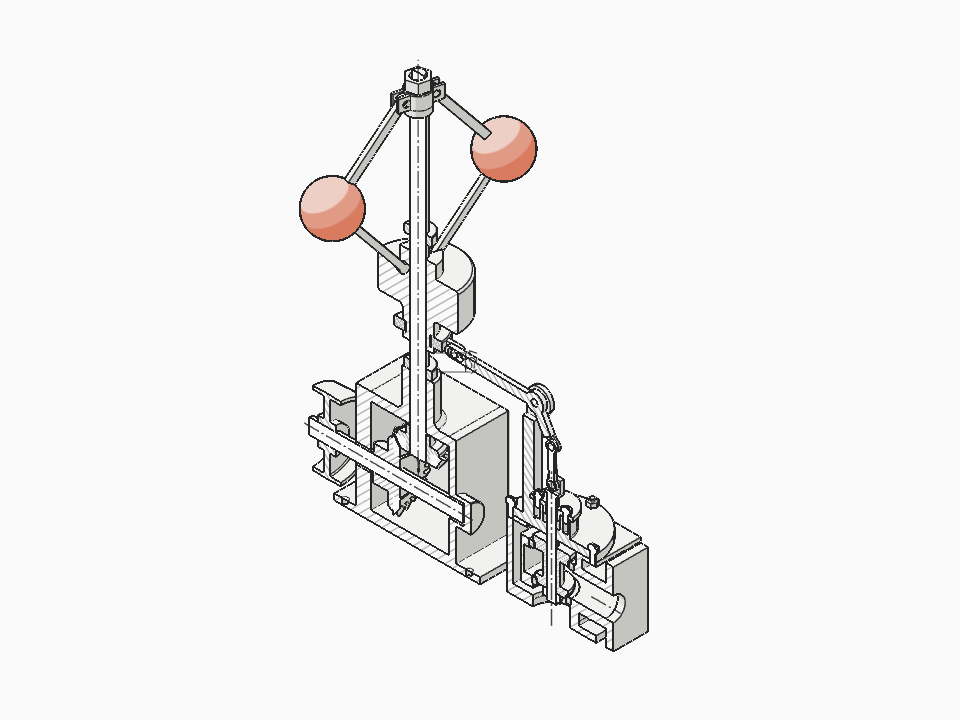

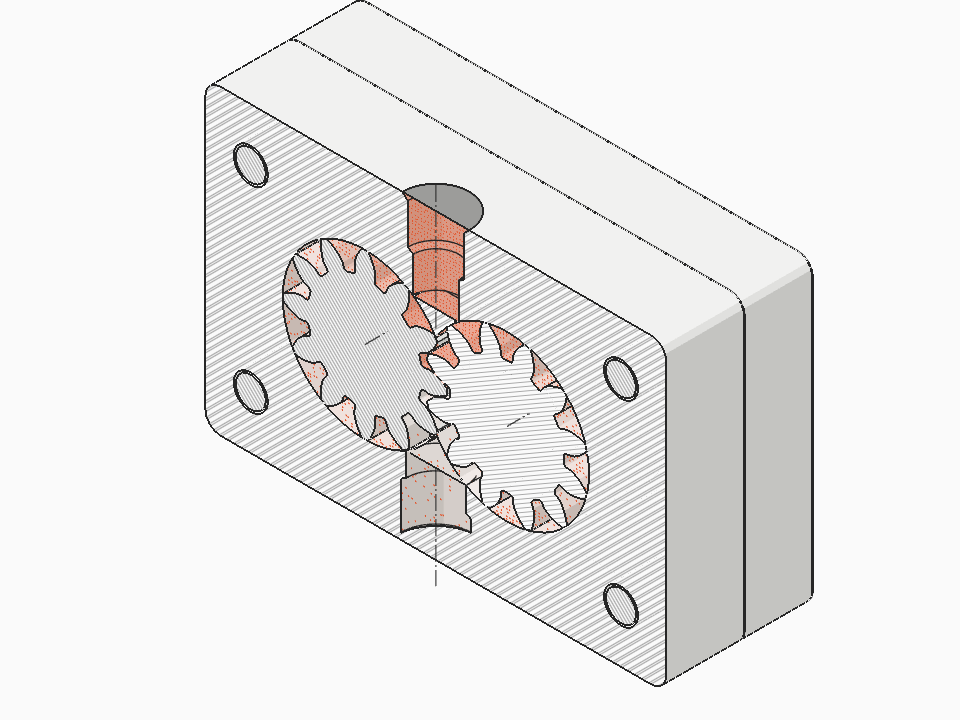

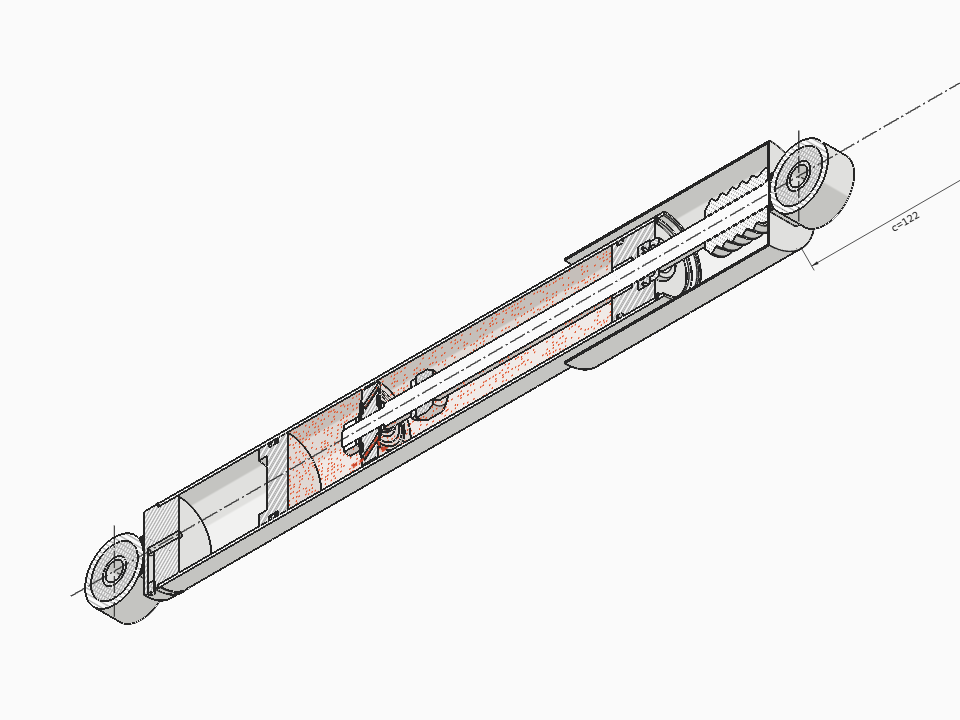

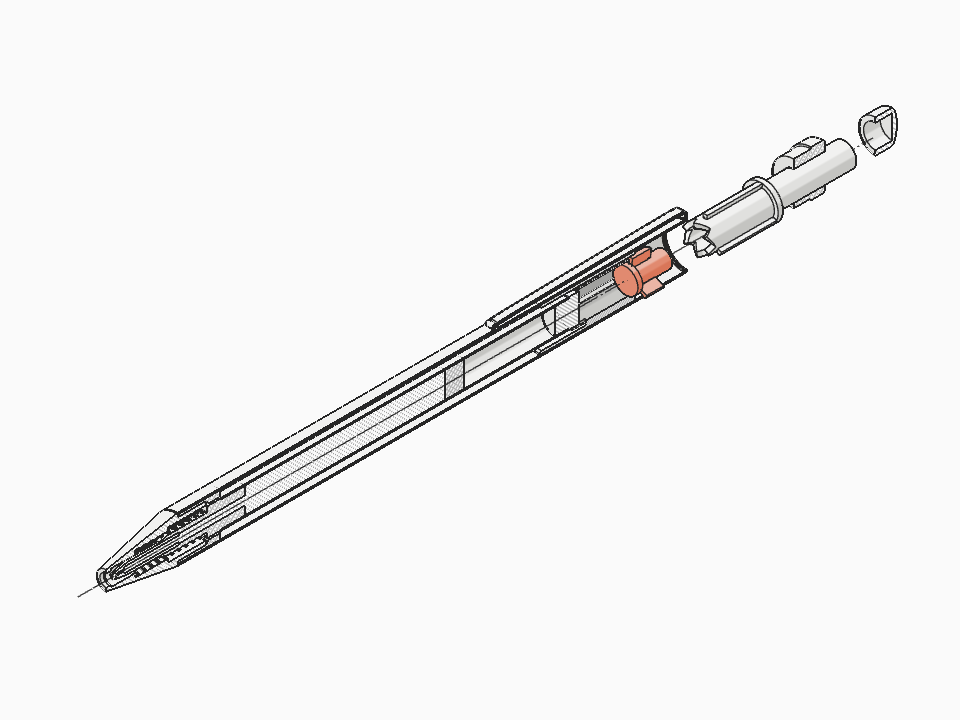

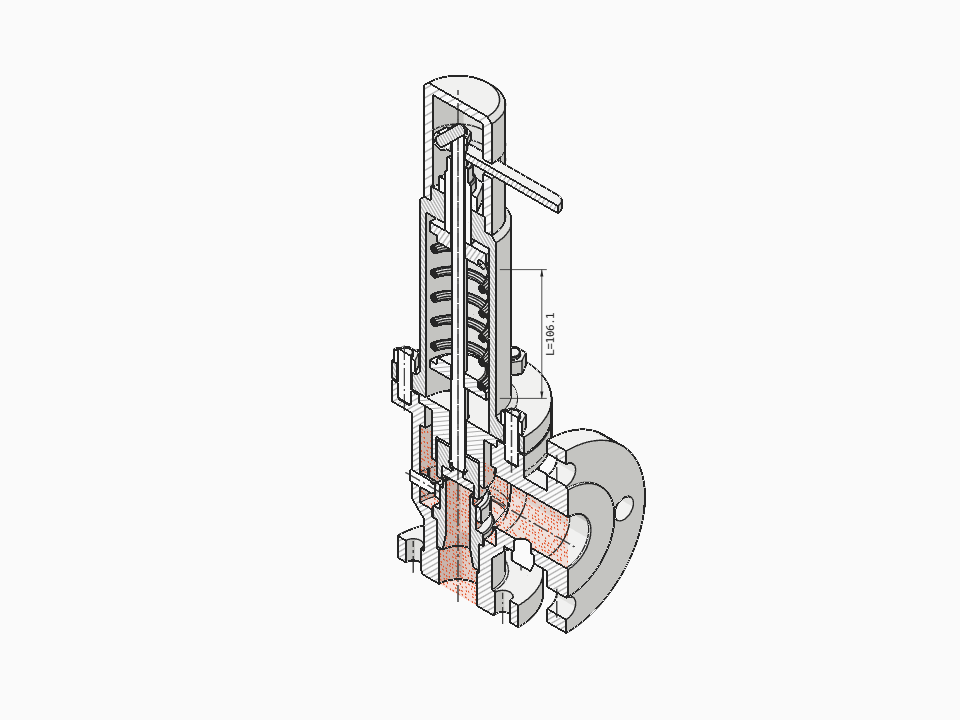

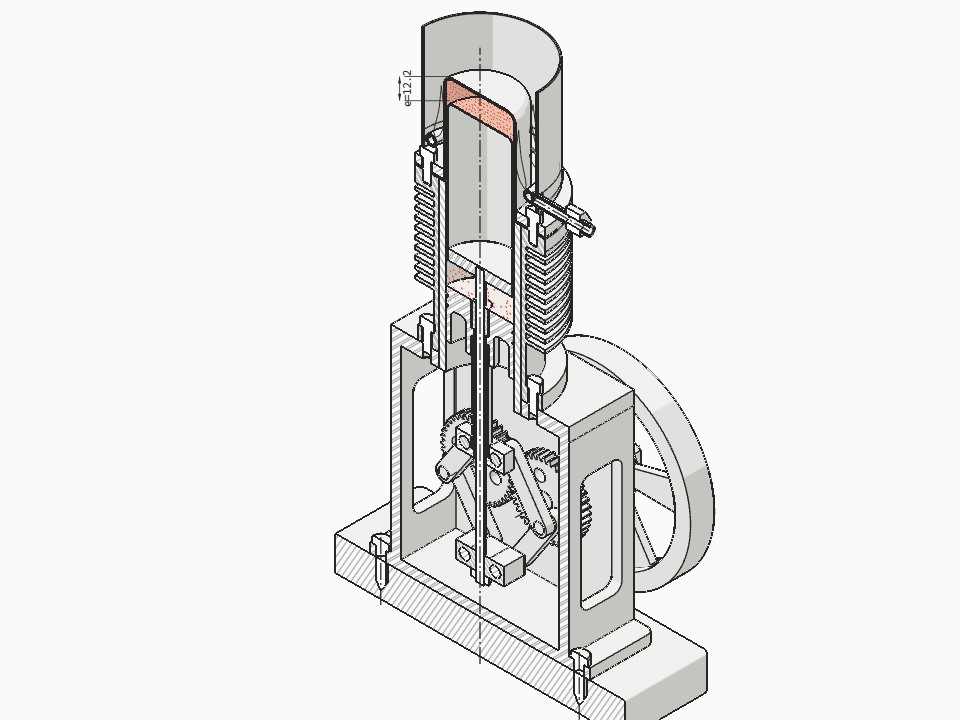

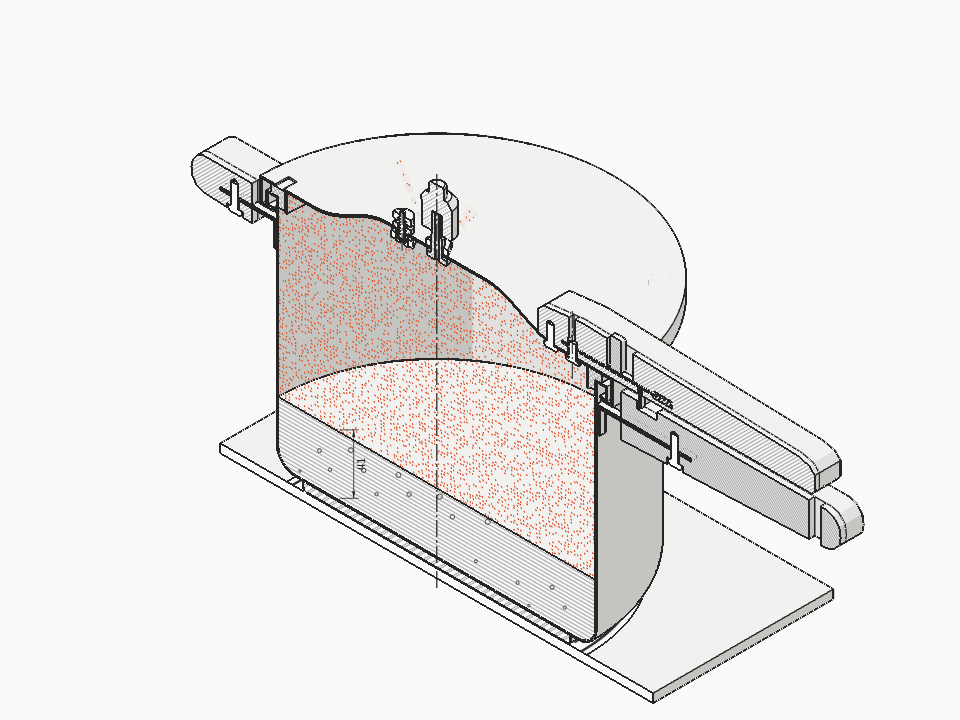

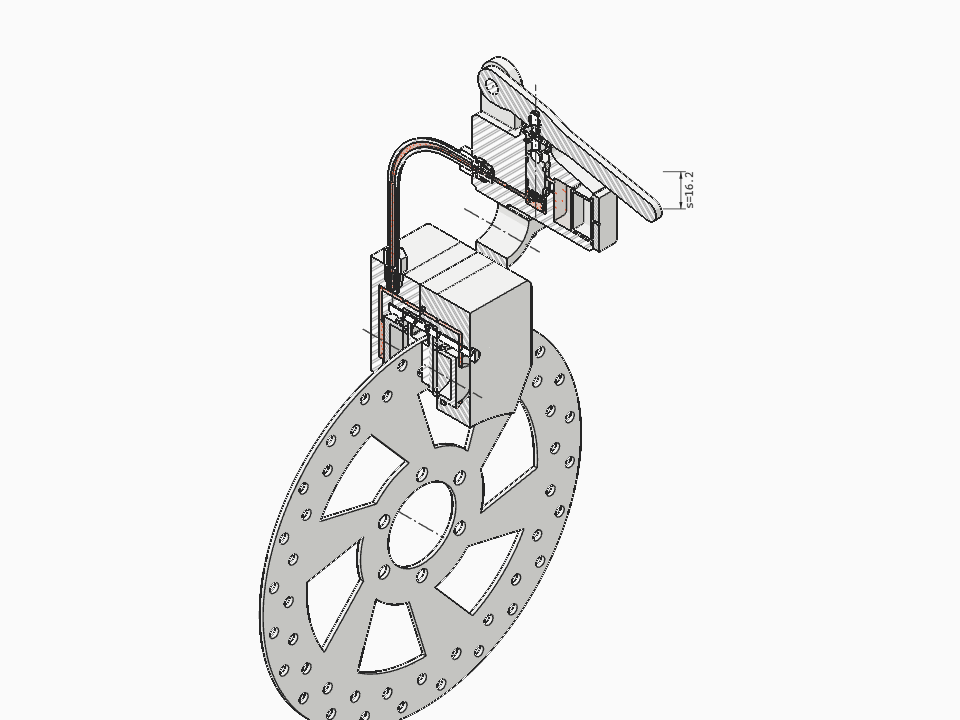

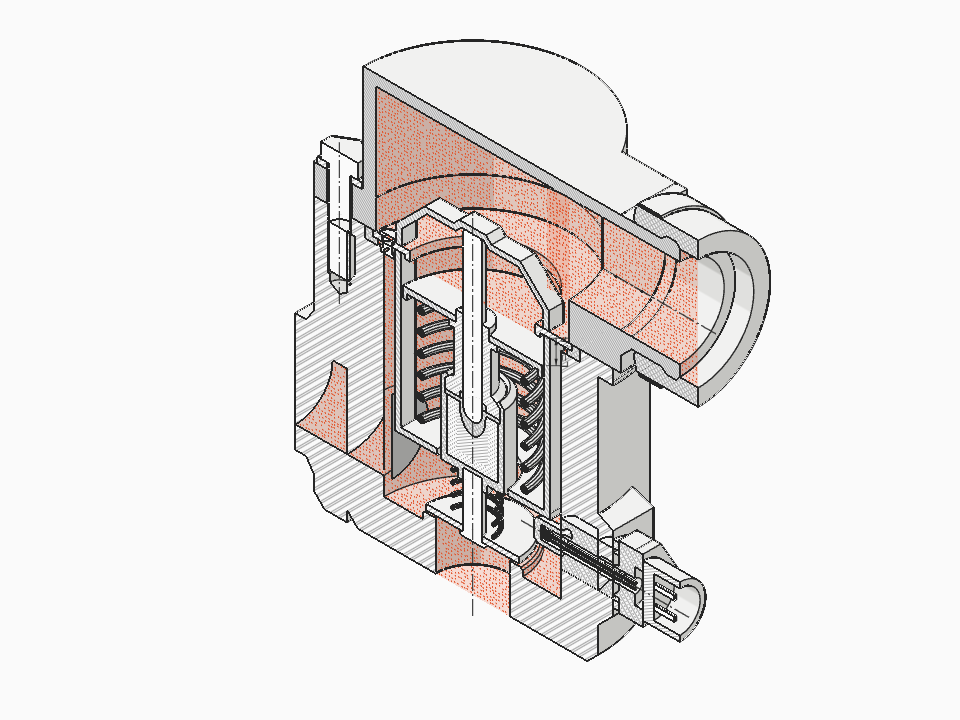

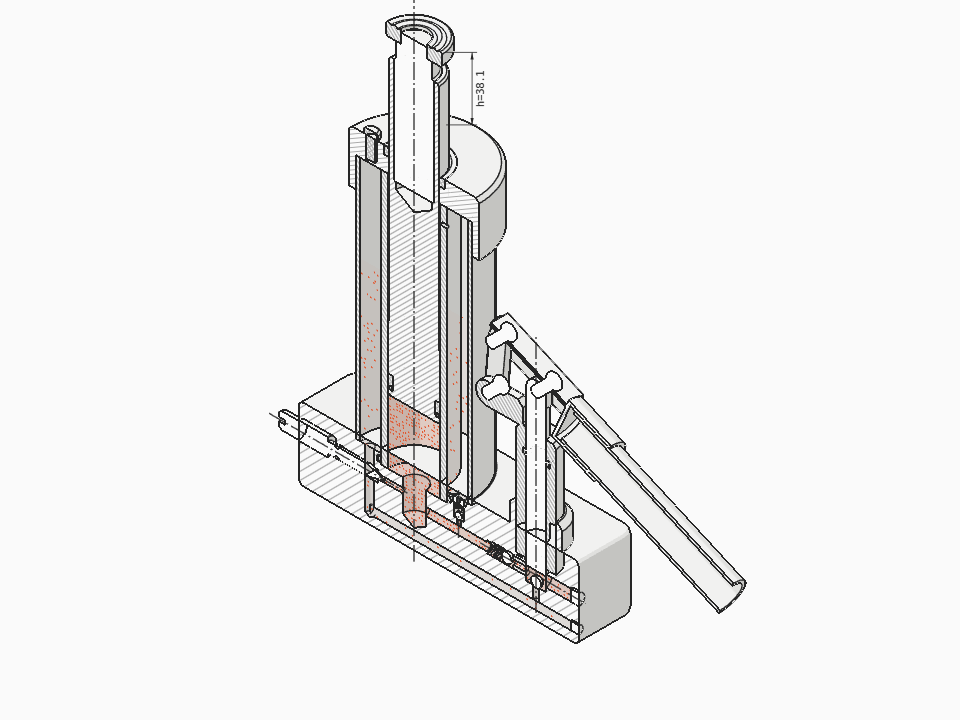

Four-stroke enginePipeline stagesFlyball governorFeedback controlLever escapementClock tickBottle jackLeverageWC cisternRate limitingDoor closerDebouncePin tumbler lockAuthenticationCircuit breakerCircuit breakerWax thermostatSetpoint controlRelief valveBack-pressureDifferentialLoad balancingShock absorberLow-pass filterClick penState machineCentrifugal pumpOperating pointGear pumpBatchingCarburettorBernoulliPressure cookerInterlockSolenoid valveAmplificationStirling engineHeat engineDisc brakeReplication

Six sheets, up close06

Six of the sheets that explain software ideas, each a real mechanism doing the same thing.

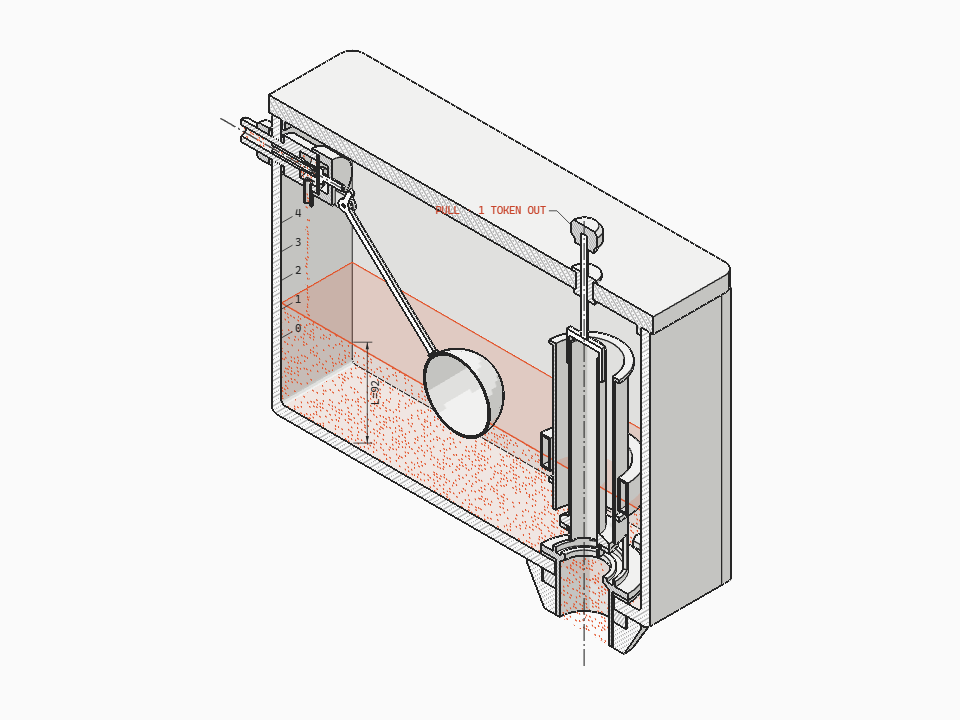

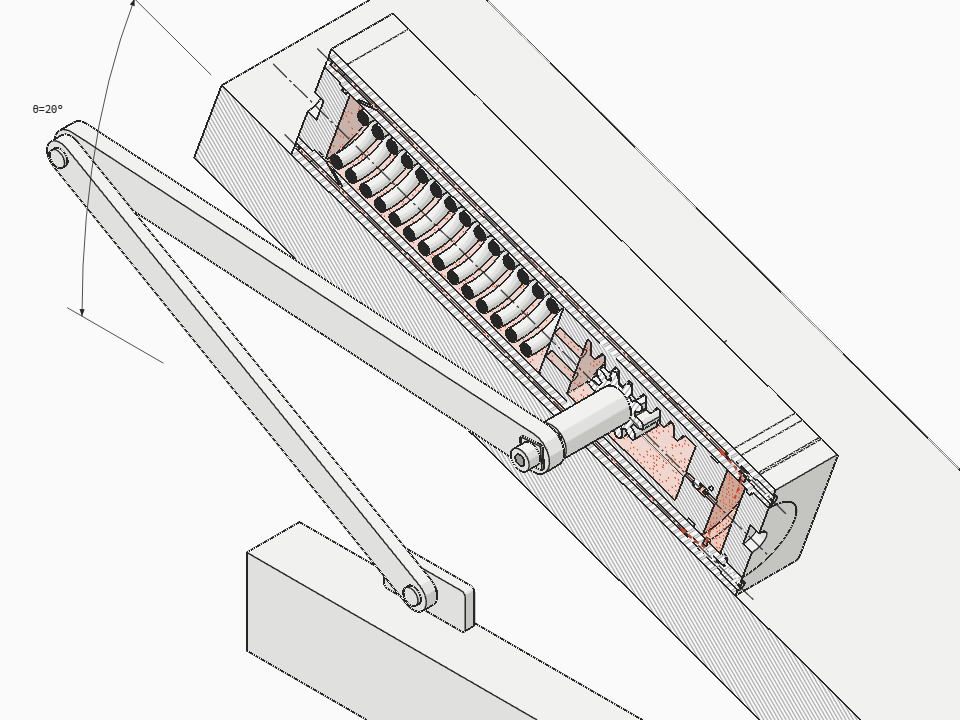

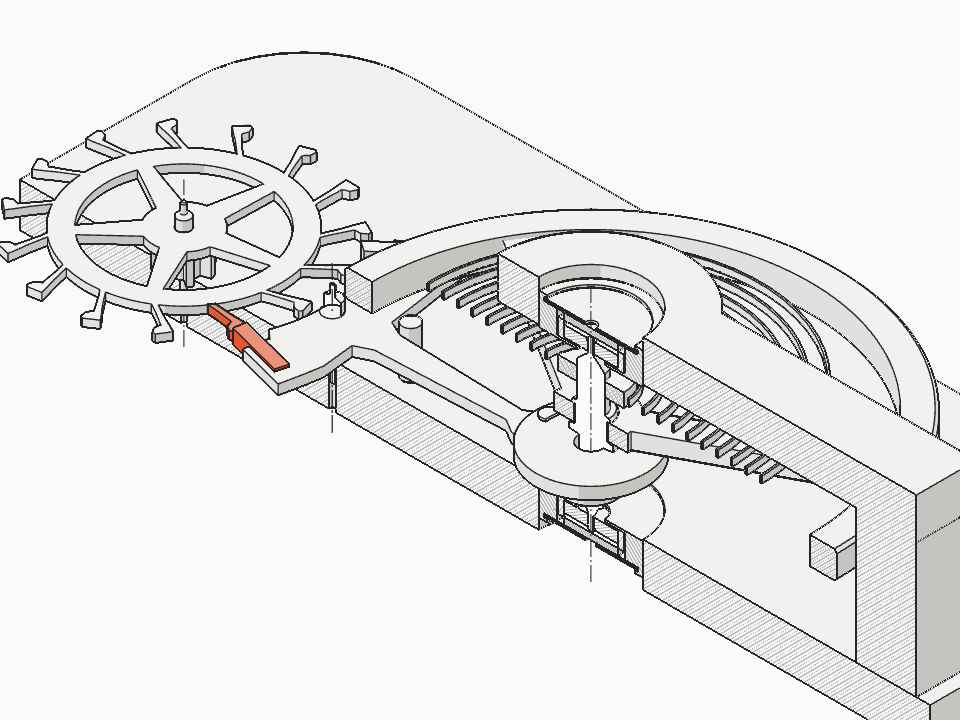

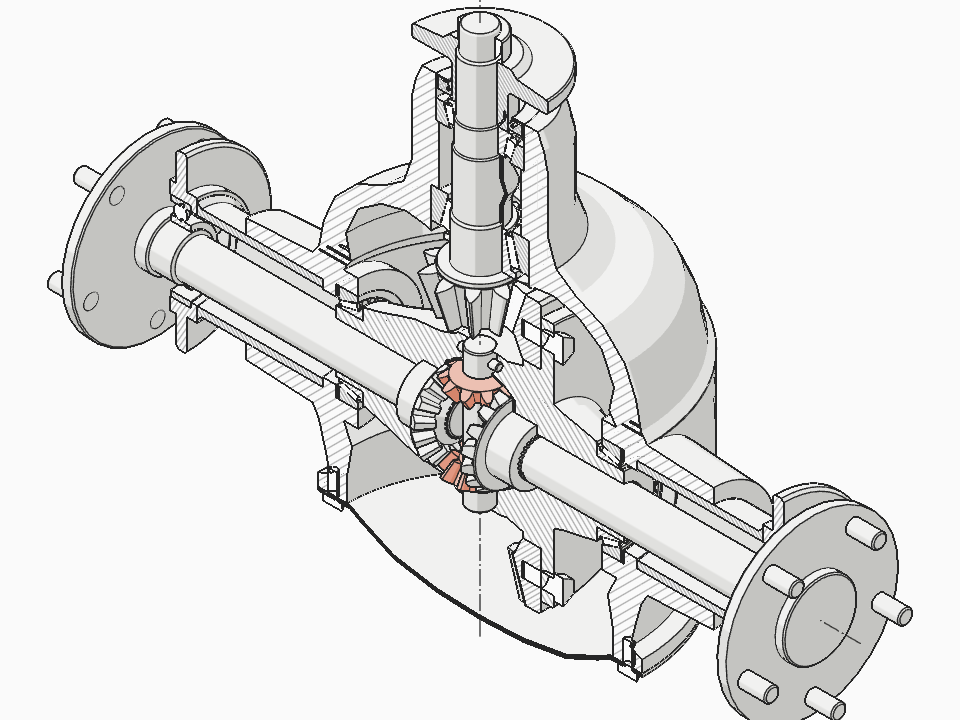

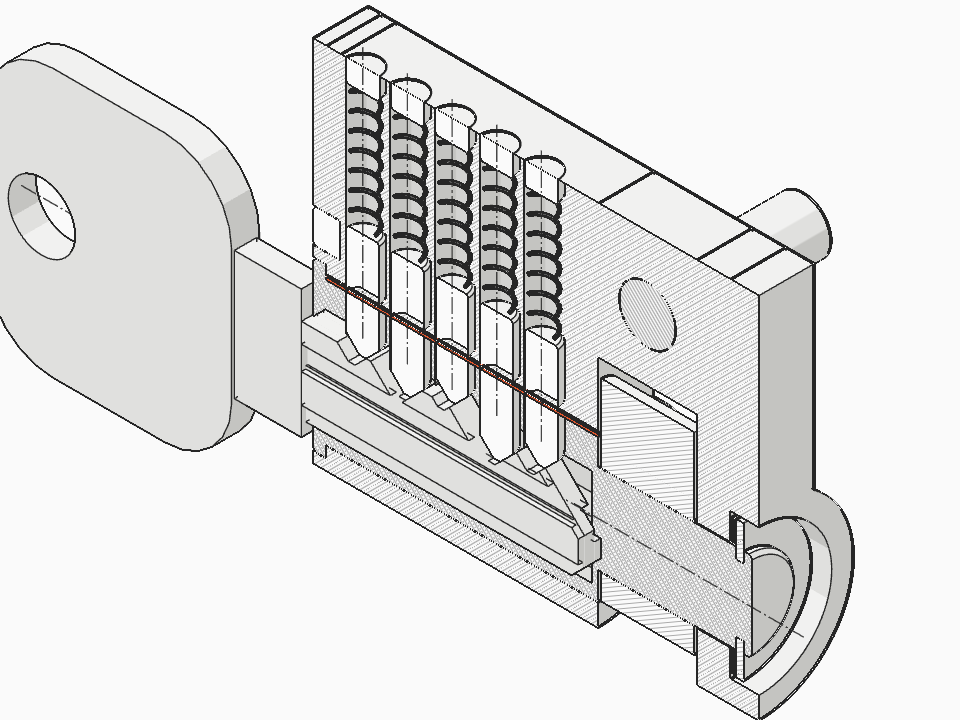

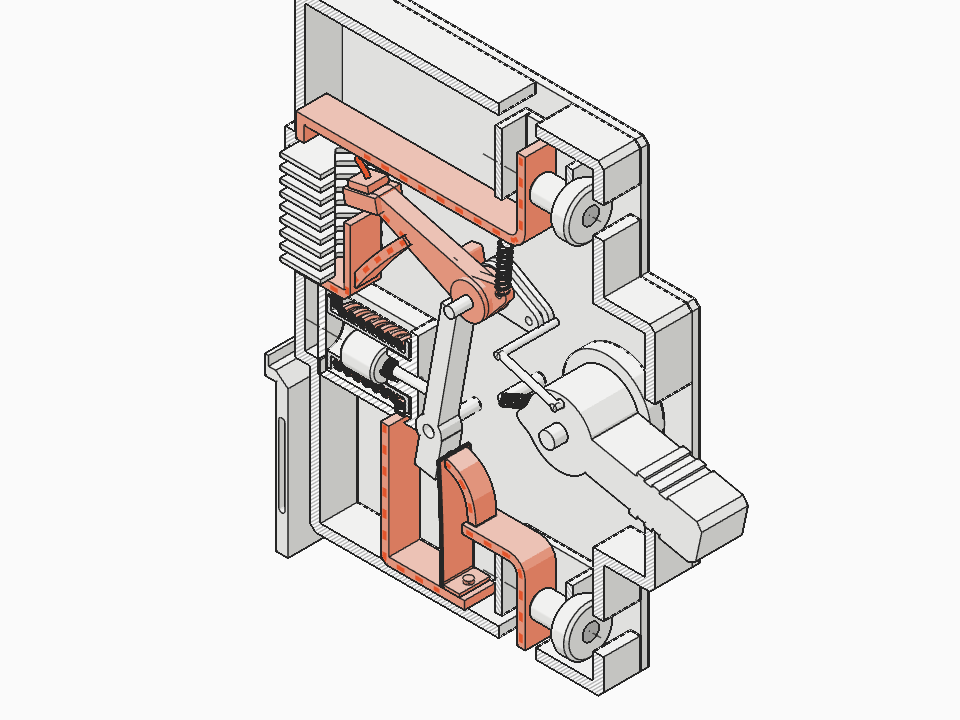

Rate limitingClose-coupled WC cistern with a diaphragm float valve and a pull-knob drop valve, in sectionToken bucket rate limiting (API rate limits) DebounceOverhead hydraulic door closer, rack and pinion, EN 1154 size 3, in plan sectionDebounce: act only once the input has stopped for long enough Circuit breakerB16 miniature circuit breaker (EN 60898-1) cut on its centre planeThe circuit breaker pattern: closed, open, half-open AuthenticationFive-pin euro-profile half cylinder (DIN 18252, 30/10) and its key in longitudinal sectionAuthentication by matching a secret: every factor must match (AND) Clock tickSwiss lever watch escapement in plan, with a section through the balance staff and its jewel bearingsTurning stored energy into equal ticks: a clock-driven scheduler, a rate-limited event loop Load balancingRear-axle open bevel-gear differential in plan section, with the car in a turnSplitting one input between two outputs that may run at different speeds: load balancing

Two big sheets07

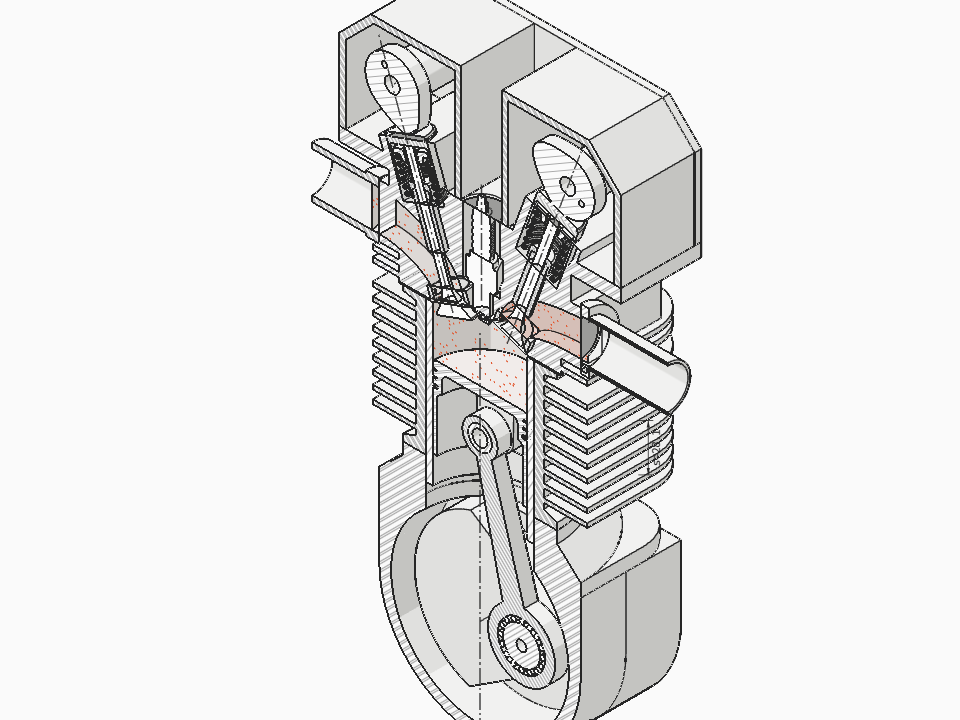

Two of the densest sheets. The four-stroke engine runs an Otto cycle at 6000 rpm with valve timing from the cam profiles; the flame grows from the plug and the P–V loop traces live. Drag the crank, or press Space.

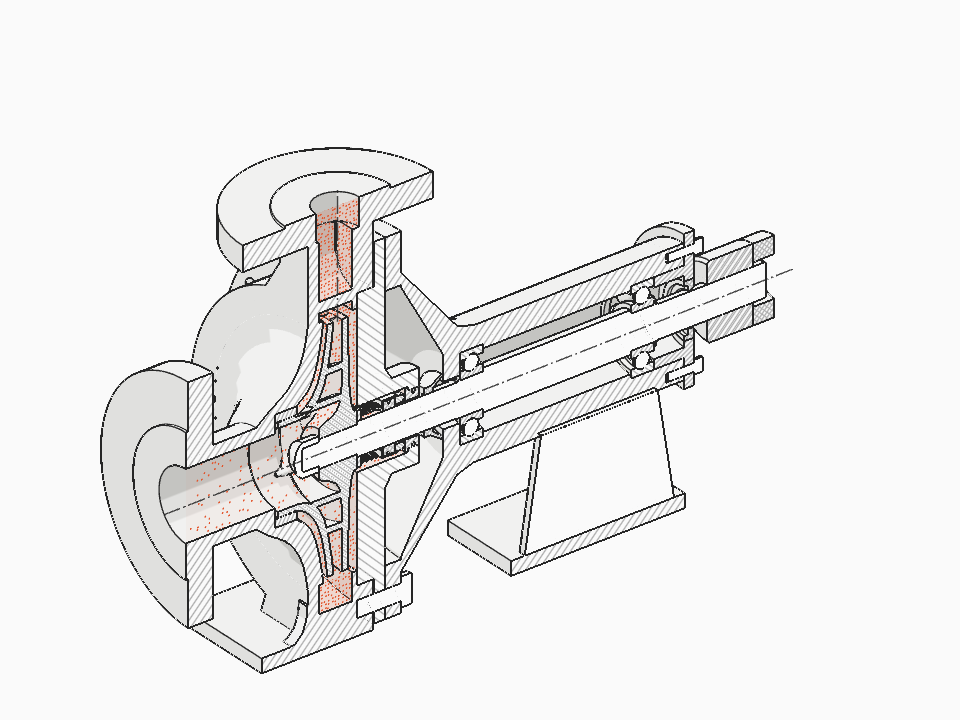

The centrifugal pump is cut twice, through the shaft and through the volute. The duty point slides along the pump curve as the speed changes and the valve throttles; below 1674 rpm it can't lift the water and nothing flows.

Where it's useful08

A live section is useful wherever someone needs to see inside something and trust what they see.

Four themes09

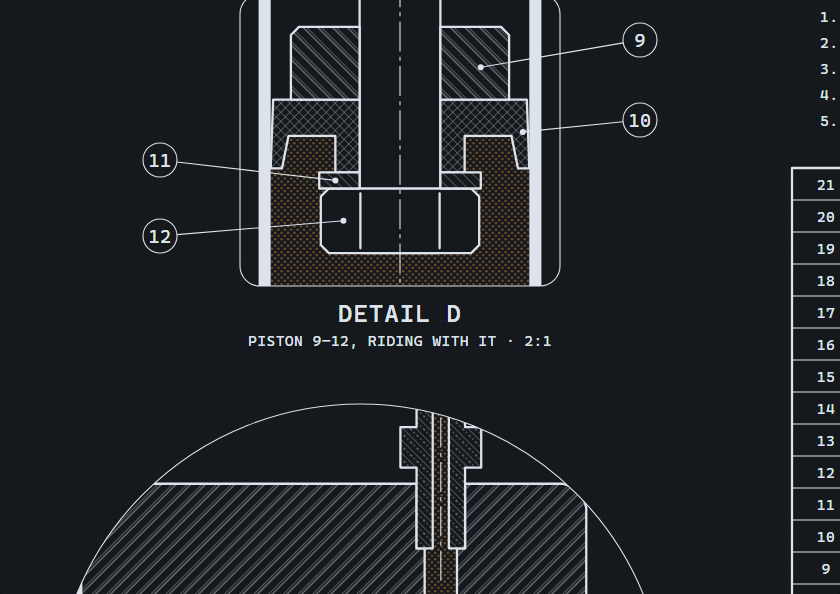

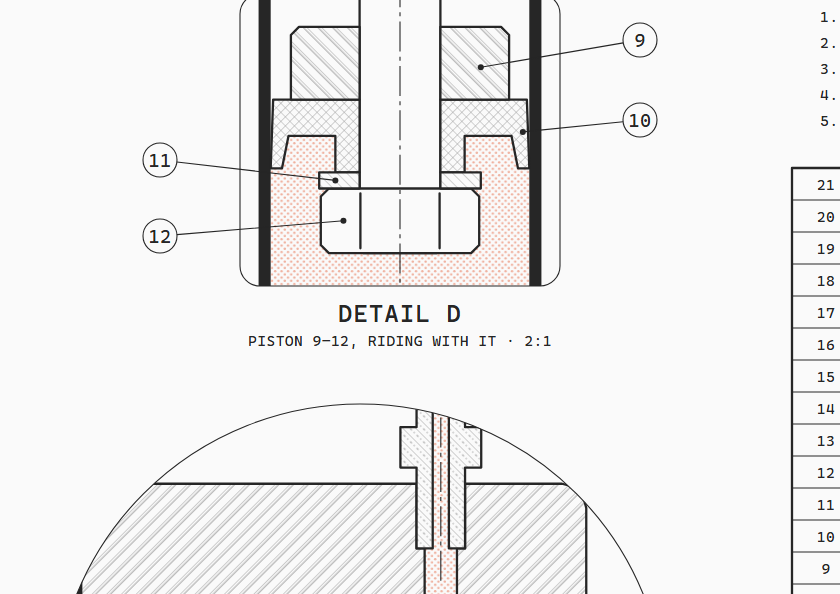

Colours are tokens, never values, so every sheet comes in four themes: blueprint, paper, white and dark. Pick one in the sheet's bar, or add ?theme= to its address.

The launch film was cut in other styles too. Each is about a minute, with a voice-over, and they're on the release page.

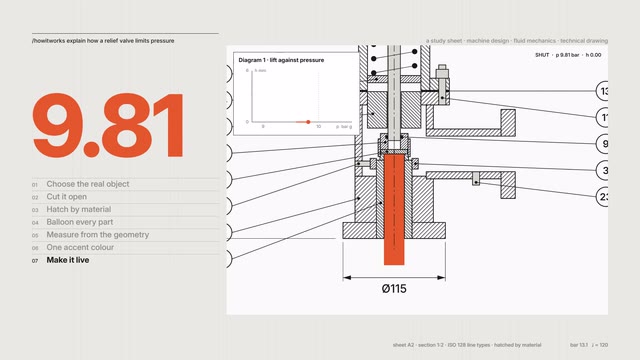

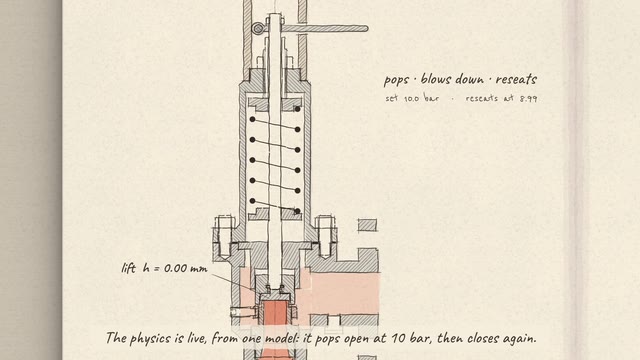

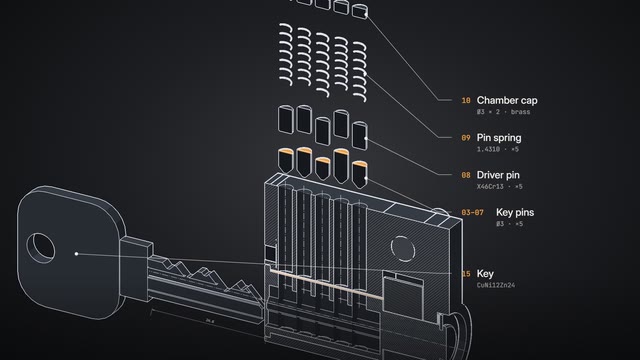

MixedTerminal, sheet and 3DSwissGrid, numbers, one redIsometricBlocks on a benchSketchA drafting notebook

In your code10

A sheet is a single HTML file: inline SVG, inlined CSS and plain JavaScript. Embed one anywhere:

<iframe src="floor-pump.html?theme=white" style="width:100%;aspect-ratio:1200/905;border:0"></iframe>

The drafting kit is pure functions that return SVG strings, so it runs in Node and in the page:

npm install howitworks

import * as K from "howitworks/kit/draft";

const V = K.view({ x: 190, y: 780, scale: 1 / 2.5 });
const barrel = K.revolve([[16, 34], [17.5, 34], [17.5, 384], [16, 384]]);
svg += K.section(V, barrel, { mat: "alu", angle: 45 });
svg += K.dim(V, [-17.5, 384], [17.5, 384], { dir: "h", off: -24, prefix: "Ø" });

Every sheet understands the same addresses:

Install11

One command copies the skill into ~/.claude/skills/howitworks:

Add --project to install into this project's .claude/skills, or --no-examples for a smaller install. Other ways in:

# the skills CLI (Claude Code, Cursor, Codex and other agents)
npx skills add hariFED/howitworks

# as a Claude Code plugin
/plugin install howitworks --marketplace hariFED/howitworks

# or clone it
git clone https://github.com/hariFED/howitworks ~/.claude/skills/howitworks

Agents can read the whole project at a glance from llms.txt.

It needs Node.js 20 or later, and Chrome, Chromium or Edge for the checks. Restart Claude Code, then try:

/howitworks explain how a mechanical watch keeps time
/howitworks draw a token bucket rate limiter as a machine
/howitworks how does a pressure cooker cook faster?
/howitworks a section through a bicycle disc brake caliper

Limits12

It takes time. A good sheet is about an hour of Claude's work, most of it in the second look: reading close-ups and fixing what a checker would mark down.

Explanatory, not manufacturing. Proportions, standard parts and materials are real and the physics is a genuine model, but nobody should machine a part from these sheets.

3D is a companion. The 3D view turns, cuts and explodes, but dimensions, scales and the parts list live on the flat sheet. It needs WebGL and a connection to the three.js CDN.

The first sheet is a draft. Look at it, say what's wrong, and ask for another pass. The checker catches collisions; only you know whether the explanation lands.
